Transflective 4.3 Inches Graphic LCD Display Module ISO9001:2008 / ROHS Certificated

192*64 graphics dot matrix LCD module, 19264 LCM industrial display screen,Appearance size: 130 (width) * 65 (high) mm

Item number: FLG19264D

Key Description: 192*64 graphics dot matrix LCD module, 19264 LCM industrial display screen, parallel port Chinese font library

Category: Graphic

Product label: STN graphic LCD module

Applications: electronic tag, hand hold equipment, security, power equipment, industry, medical display, communication equipment, instruments and meters

Panel type: STN-LCD

LCD module

Panel size: 4.3"

Resolution: 192 * 64

Physical shape: flat rectangle

Dot size: 0.458 (width) * 0.458 (high) mm

Point spacing: 0.05 (width) * 0.05 (high) mm

Display size: 97.49 (width) * 32.46 (high) mm (A.A)

Visual size: 104 (width) * 39 (high) mm (V.A)

Appearance size: 130 (width) * 65 (high) mm

Max thickness: 13.5 mm

Polarizer: transmissive type

Color mode: blue film negative display

Best viewing angle: 6 o'clock

Display color: monochrome

Duty cycle: 1/32

Controller: AiP31020

Bonding mode: COB

Backlight type: WLED

Signal type: parallel port data

Signal pin: 20Pins

Touch screen: None

Operating temperature: -20 ~ 70 degrees C

Storage temperature: -30 ~ 80 degrees C

graphic lcd module

lcd graphic module

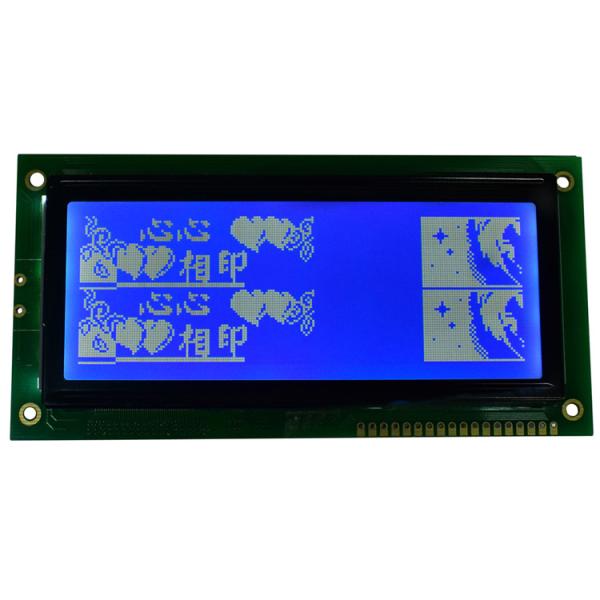

Transflective 4.3 Inches Graphic LCD Display Module ISO9001:2008 / ROHS Certificated Images
